2 CH DR Loop Mod

Post by colemaneuclid » Wed Sep 17, 2008 6:06 pm

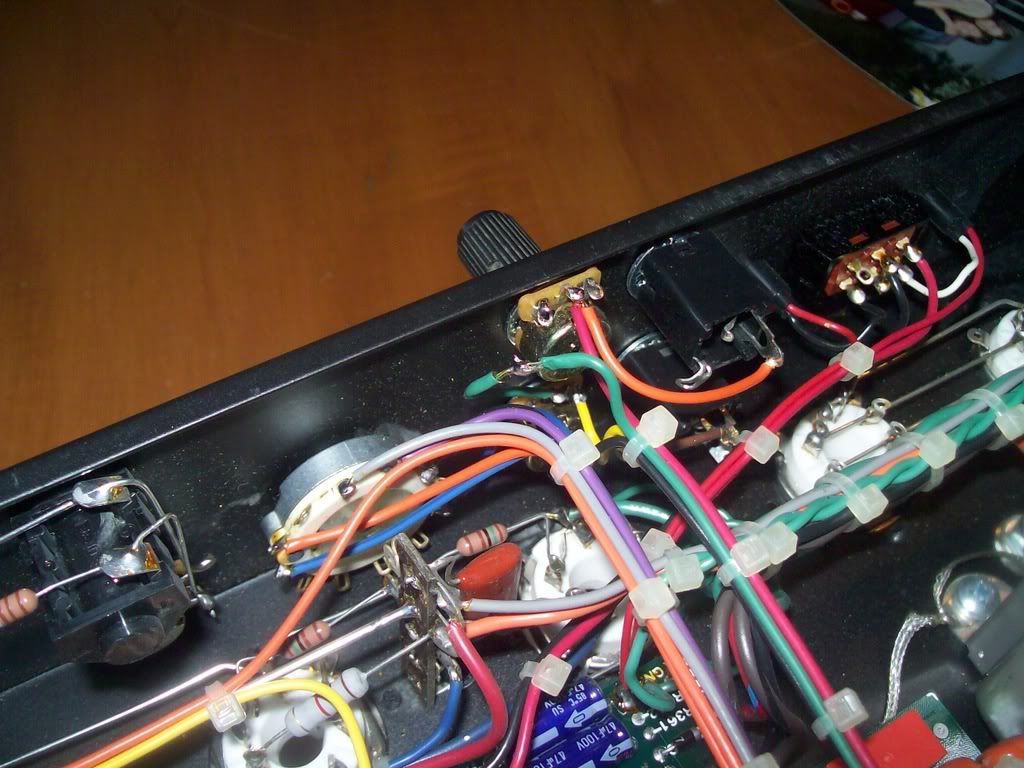

I have a 2 channel dual rectifier and I can't find a good picture of a pre/post mod of the loop. I want to make it a series loop. here is a pic of the backside of my DR

Can anyone give me some tips/pics on how do change my loop?
Mesa/Boogie Dual Rectifier (2 channel)
Mesa/Boogie Mark IV (short head)
Mesa Stiletto cab
Mesa Recto slant cab
Mesa Recto straight/slant cab

Commander Coo1
Mark III
Posts: 234
Joined: Sun Dec 18, 2005 2:20 pm
Contact:

Post by Commander Coo1 » Thu Sep 18, 2008 7:57 am

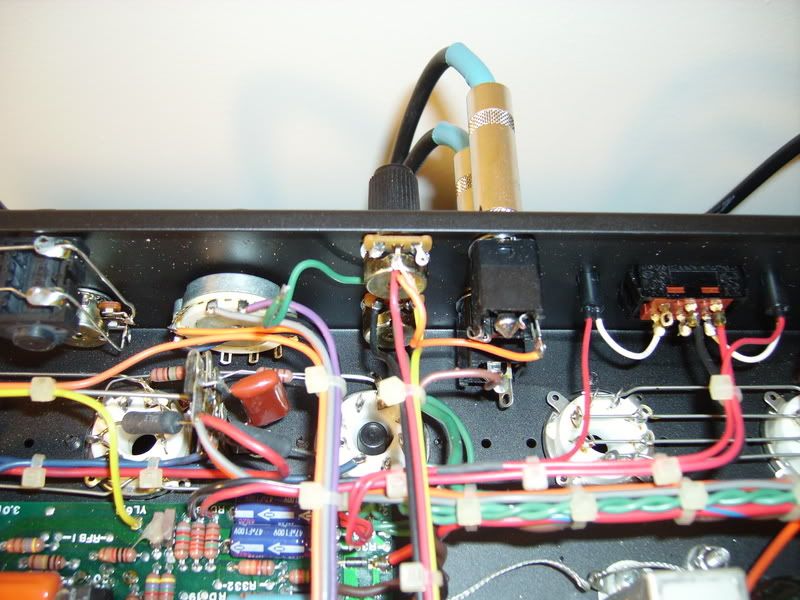

before:

after:
i hope this helps you
so remove the green wire from the left lug, and tape it up with electrical tape and tuck it away.
next, move the orange wire from the right lug to the center lug.
pretty damn easy once you get in there and realize thats all it is lol
when i did it, i set aside a large chunk of tim to do it and i was done in like 20 minutes (i was really nervous about actually modifying it and doing it wrong lol)

User avatar
colemaneuclid
Mark II
Posts: 98
Joined: Sun Apr 13, 2008 3:19 pm
Location: Cleveland Ohio

Post by colemaneuclid » Thu Sep 18, 2008 4:32 pm

as you can see there is a green wire going to the mix pot on my amp as where yours it is going to the send pot [mid tab] now if i rewire my green wire from the board to the send pot would that work?
Mesa/Boogie Dual Rectifier (2 channel)
Mesa/Boogie Mark IV (short head)
Mesa Stiletto cab
Mesa Recto slant cab
Mesa Recto straight/slant cab

Commander Coo1
Mark III
Posts: 234
Joined: Sun Dec 18, 2005 2:20 pm
Contact:

Post by Commander Coo1 » Thu Sep 18, 2008 10:23 pm

hmmm thats interesting. i would probobly remove both from the tab, but heep them connected to eachother. but thats just a guess, theres only 2 ways to find out, someone who knows better will tell you or you can just try it

ShamefulAddiction
Mark II
Posts: 62
Joined: Sat Aug 23, 2008 8:34 pm

Post by ShamefulAddiction » Thu Sep 18, 2008 11:46 pm

So with this mod does it render the send/mix pots useless?
AMPS:
Mesa Dual Rec Tremoverb 2x12 combo
Peavey Bandit 112

AXES:
Schecter C-1 Classic
Fender Lonestar Strat
Gretsch 1960 Double Anniversary

User avatar
colemaneuclid
Mark II
Posts: 98
Joined: Sun Apr 13, 2008 3:19 pm
Location: Cleveland Ohio

Post by colemaneuclid » Sat Sep 20, 2008 12:07 am

well i went ahead and modded it anyways [my uncle is an electronics genius] he found the schematics and said it would work out fine. sofar so good. but it sounds way more raw when i only use a patch cable in the loop with the send pot at 100% the mix pot is taken out of the equation. with the loop bypassed the amp sounds mean and full like it should. i still have yet to tweak it with the effects loop on both orange and red.
Mesa/Boogie Dual Rectifier (2 channel)
Mesa/Boogie Mark IV (short head)
Mesa Stiletto cab
Mesa Recto slant cab
Mesa Recto straight/slant cab

Commander Coo1
Mark III
Posts: 234
Joined: Sun Dec 18, 2005 2:20 pm
Contact:

Post by Commander Coo1 » Sun Sep 21, 2008 9:33 pm

so what did you end up doing with that green wire?

kflow
Mark I
Posts: 44
Joined: Fri Dec 29, 2006 5:27 pm

Post by kflow » Sun Oct 19, 2008 8:12 pm

Well I did it. I went and bought the soldering iron and looked at the pictures and watched some soldering videos on you tube and I did the FX loop mod myself. Holy sh!t!! Me Triple rectifier has come alive. I cannot believe how much better it sounds. I love it! Now I have a question or two.

1. What are you guys setting your send level at? I find that 1 to 2 oclock is good. Anything higher and I start clipping my effects.

2. When I am not playing with the volume on my guitar down I have a hum I never really had at least not as noticeable. I moved my Boss NS into the loop and problem solved. Has anyone else noticed this hum?
2 channel Triple Rectifier
Mesa 4x12 slant cabinet
Road King combo
Genz Benz 4x12
Boss TU-2, Maxon OD-808, DBX 166XL
DBX 231 EQ, G Major
GCX switcher, Ground control
Gibson Les Paul gothic studio emg81/85
Jackson SLSMG emg81/85
Ibanez RG7321

User avatar
colemaneuclid
Mark II
Posts: 98
Joined: Sun Apr 13, 2008 3:19 pm
Location: Cleveland Ohio

Post by colemaneuclid » Sun Oct 19, 2008 9:50 pm

Commander Coo1 wrote:so what did you end up doing with that green wire?
i just removed the green wire from the mix pot and wrapped it in electrical tape
Mesa/Boogie Dual Rectifier (2 channel)
Mesa/Boogie Mark IV (short head)
Mesa Stiletto cab
Mesa Recto slant cab
Mesa Recto straight/slant cab

zakmetal
Bottle Rocket
Posts: 3
Joined: Thu Jun 25, 2009 12:41 am

Re: 2 CH DR Loop Mod

Post by zakmetal » Wed Apr 07, 2010 11:02 pm

Hey guys I am new here and since I just got a red g-system :P I have some questions for you guys. As you know the Mesa Dual Rec's FX loop has a lot of bleed. I have a dual rec racktifier with the black chassis. I care nothing about the FX blend option or turning the fx loop on or off (I want it on all the time). It would be cool if the send knob still works. Soo all I have to do is clip the green wire? or do i ALSO need to solder the orange wire to the read lead on the pot? This is suspiciously too simple. :|
Any help is appreciated.
Thanks,
-Zak-

User avatar
mikey383
Single Recto
Posts: 1391
Joined: Tue Jan 25, 2005 12:14 am
Location: North of Dayton, Ohio

Re: 2 CH DR Loop Mod

Post by mikey383 » Thu Apr 08, 2010 7:21 am

zakmetal wrote:Hey guys I am new here and since I just got a red g-system :P I have some questions for you guys. As you know the Mesa Dual Rec's FX loop has a lot of bleed. I have a dual rec racktifier with the black chassis. I care nothing about the FX blend option or turning the fx loop on or off (I want it on all the time). It would be cool if the send knob still works. Soo all I have to do is clip the green wire? or do i ALSO need to solder the orange wire to the read lead on the pot? This is suspiciously too simple. :|
Any help is appreciated.
Thanks,
-Zak-

Clip the green wire AND solder the orange to the red. The send pot is still active, but the mix knob isn't.
Guitars:Schecter C-1 Classic, Ibanez RG7321, Epiphone LP Supreme
Amps:70's Earth head
Cabs:Recto 4x12, 5150 4x12
Effects:Digitech GSP2101, Budwah
Past amps '95 Dual Recto, '96 Dual Recto, Stiletto Trident, 3 ch. Triple Rec

User avatar
mikey383
Single Recto
Posts: 1391
Joined: Tue Jan 25, 2005 12:14 am
Location: North of Dayton, Ohio

Re:

Post by mikey383 » Thu Apr 08, 2010 7:21 am

ShamefulAddiction wrote:So with this mod does it render the send/mix pots useless?
The send pot will still work, but the mix knob won't. You'll also still have the master volume function and the loop can still be turned on/off with the footswitch.
Guitars:Schecter C-1 Classic, Ibanez RG7321, Epiphone LP Supreme
Amps:70's Earth head
Cabs:Recto 4x12, 5150 4x12
Effects:Digitech GSP2101, Budwah
Past amps '95 Dual Recto, '96 Dual Recto, Stiletto Trident, 3 ch. Triple Rec

zakmetal
Bottle Rocket
Posts: 3
Joined: Thu Jun 25, 2009 12:41 am

Re: 2 CH DR Loop Mod

Post by zakmetal » Thu Apr 08, 2010 4:09 pm

Thanks Mikey! I will be tackling this mod tonight. I will let you guys know how it turns out.
Thanks,
-Zak-

analog
Mark I
Posts: 32
Joined: Fri Mar 07, 2008 4:17 pm

Re: 2 CH DR Loop Mod

Post by analog » Sun Apr 11, 2010 12:06 pm

Great pics!! I think I will try this too.
Dual Rec(2 channel)
Furman Power Conditioner
70's Marshall 4x12 2-g12h's,2 Vintage 30's
Morley Bad Horsie 2
Boss SD-1
Tube Screamer
ISP Decimator
Boss DM-3
Boss DD-2
Peterson Strobostomp

94Tremoverb
Single Recto
Posts: 1340
Joined: Sat Dec 05, 2009 1:07 pm

Re: 2 CH DR Loop Mod

Post by 94Tremoverb » Mon Apr 12, 2010 12:27 pm

You don't even have to move the orange wire really. If you don't, all that will happen is that the Mix knob will become a return level knob that doesn't go all the way down to zero - no big deal, you can either use it like that or leave it maxed, in which case there is no electrical difference compared to moving the wire.

*All* you really need to do is disconnect the green wire(s) from the pot.
