PostPosted: Fri Jun 12, 2009 4:24 pm
Offline
Bottle Rocket

Joined: Fri Jun 12, 2009 4:04 pm
Posts: 3
Hello guys, I'm a new 3 channels Triple Rectifier owner. I need to use my Boss GX700 into the effects loop to get all the different sounds I use. The problem is already known by all of you. Lost of volume, change of tone and a very dissapointing use of effects.
I want to make the series loop mod, but I havent found something directly related to the 3 channel Triple Rect. I would like someone to send me some schematics, and better, some intructions about how to do it. Also I would like to keep the posibility of bypassing the loop, at leats manually. I know about people who have a switch for series or parallel mode. If someone has this mod, please tell me if the change of tone issue(having the loop on and the effect unit on it) is solved or it is still there.

Thanks a lot.


Top
 Profile

PostPosted: Fri Jun 12, 2009 10:48 pm
Offline
Mark II
User avatar

Joined: Sat Aug 23, 2008 9:51 pm
Posts: 51
Location: anywhere in the U.S at any given time!

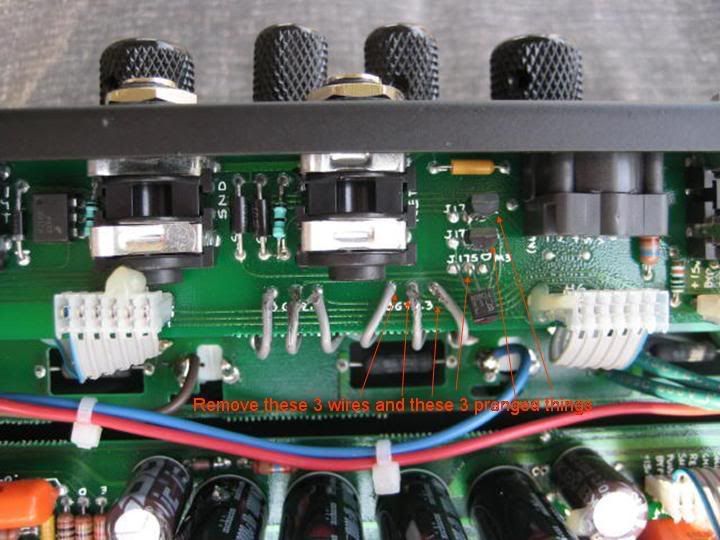

Here's a 3ch Dual Recto before the Mod.

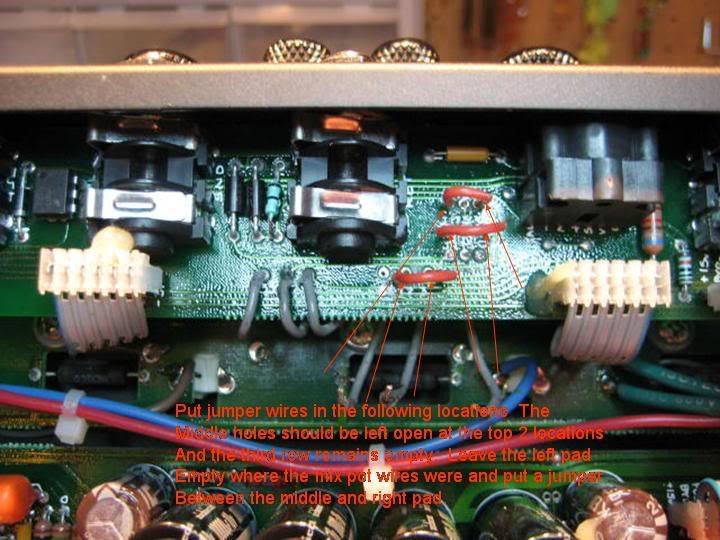

Here's The same Amp after the mod.

Follow the directions and you can't go wrong. Although this is a Dual Recto I believe the same applies to the Triple Recto.
It's the Single that's different from the 3 rectos.

Good luck,
Dave
.

_________________
Gibson Les Paul Standard
Gibson Les Paul Studio 50's tribute Gold top
Mesa Mark III Green Stripe
And thanks to the MIII a EQ, OD and Reverb put back in thier box.
Mesa C90 loaded halfback cab


Top
 Profile

PostPosted: Sat Jun 13, 2009 8:30 am
Offline
Bottle Rocket

Joined: Fri Jun 12, 2009 4:04 pm
Posts: 3
Thanks for the pictures.
And about the change of tone and the possibility of keeping the switch on/off of the loop???? Can you tell me something about this??
Talking about the pictures, what do I do with the three grey wires???

Thank you very much.


Top
 Profile

PostPosted: Sat Jun 13, 2009 3:06 pm
Offline
Mark II
User avatar

Joined: Sat Aug 23, 2008 9:51 pm
Posts: 51
Location: anywhere in the U.S at any given time!
The 3 grey wires go to the pot for the line out level. So you can disconnect them from the pot or remove the pot.
Your choice. As far as fixing the sound with effects in the loop it will fix them. Especially if they are digital effects.








Good luck!

Dave

_________________
Gibson Les Paul Standard
Gibson Les Paul Studio 50's tribute Gold top
Mesa Mark III Green Stripe
And thanks to the MIII a EQ, OD and Reverb put back in thier box.
Mesa C90 loaded halfback cab


Top
 Profile

PostPosted: Sat Jun 13, 2009 5:39 pm
Offline
Bottle Rocket

Joined: Fri Jun 12, 2009 4:04 pm
Posts: 3
Ok, thanks Mark I. A last question. Is it necessary to remove the three proged things that you say?? What is their function?? I have removed the whole plate where the rear jacks are and I think it can be safer for the amp (due to use the iron solder int the plate),to remove the wires from the pot, and solder the second and third wires together and isolate the first one. And about those three things, I just want to know if it is completly necessary to remove them and do the connection with the jumper wires.


Thanks again

PD: Another question to people who are really into electronics... do you imagine a way to make this mod through a switch?? I mean, change from parallel to series using a switch. I know that a technician here in spain does it, but it's too expensive for me to send the amp and pay the mod cost.


Top
 Profile

PostPosted: Sun Jun 14, 2009 11:14 pm
Offline
Single Recto
User avatar

Joined: Tue Jan 25, 2005 12:14 am
Posts: 1391
Location: North of Dayton, Ohio
Those 3 three-pronged thingies are transistors. I suspect they are there to recover any gain lost from the loop.

The mod is actually a little easier than that, and you don't have to remove the transistors:


The 0 ohm resistors are those blue ones beside the jacks with the single black stripe.

[EDIT]I removed the footswitch mod because I don't have the complete documentation.

_________________
Guitars:Schecter C-1 Classic, Ibanez RG7321, Epiphone LP Supreme
Amps:70's Earth head
Cabs:Recto 4x12, 5150 4x12
Effects:Digitech GSP2101, Budwah
Past amps '95 Dual Recto, '96 Dual Recto, Stiletto Trident, 3 ch. Triple Rec


Last edited by mikey383 on Wed Feb 02, 2011 9:19 am, edited 3 times in total.

Top
 Profile

PostPosted: Wed Sep 16, 2009 2:23 pm
Offline
Mark I
User avatar

Joined: Wed Sep 16, 2009 2:17 pm
Posts: 32
Location: Ontario, Canada
Did anyone try the above instructions from mikey383? His handwriting a little tough to make out.

I have the same issue, I would prefer to try this myself rather that ship it off to voodoo amps for the modification. But I'm a little hesitant about haphazardly chopping up a $1400 amp :)

Any words of experience out there?

thx

_________________
Guitars: Gibson X-PLORER Studio with 2 EMG 81's, Hondo 2 Strat with EMG 81
Effects: ART SGX 2000 x 3, Dunlop Custom Audio Electronics Wah
Amps: TriAxis/2:90, Triple Rectifier, Marshall JCM800 50 Watt Combo
Cabs:Recto 4x12 Standard Straight and Slant


Top
 Profile

PostPosted: Wed Sep 16, 2009 11:38 pm
Offline
Single Recto
User avatar

Joined: Tue Jan 25, 2005 12:14 am
Posts: 1391
Location: North of Dayton, Ohio
That's not my handwriting BTW, that's straight from Mesa. But here it is typed out for you:

1) Lift wiper wire of send and mix pots from rear jack board
2) Lift forward end of 0 ohm resistors next to send and return jacks
3) Add jumper from mix pot's empty pad to lifted end of return jack's 0 ohm resistor
4) Extend send pot's wiper wire to lifted end of send's 0 ohm resistor

_________________
Guitars:Schecter C-1 Classic, Ibanez RG7321, Epiphone LP Supreme
Amps:70's Earth head
Cabs:Recto 4x12, 5150 4x12
Effects:Digitech GSP2101, Budwah
Past amps '95 Dual Recto, '96 Dual Recto, Stiletto Trident, 3 ch. Triple Rec


Top
 Profile

PostPosted: Thu Sep 17, 2009 10:36 am
Offline
Mark I
User avatar

Joined: Wed Sep 16, 2009 2:17 pm
Posts: 32
Location: Ontario, Canada
Excellent, thanks for taking the time to type it out. It's cool that Meas will actually send you that kind of stuff, great PR.

_________________
Guitars: Gibson X-PLORER Studio with 2 EMG 81's, Hondo 2 Strat with EMG 81
Effects: ART SGX 2000 x 3, Dunlop Custom Audio Electronics Wah
Amps: TriAxis/2:90, Triple Rectifier, Marshall JCM800 50 Watt Combo
Cabs:Recto 4x12 Standard Straight and Slant


Top
 Profile

PostPosted: Tue Nov 17, 2009 2:21 pm
Offline
Mark I

Joined: Sat Oct 24, 2009 12:54 am
Posts: 44
Location: Tucson, Arizona, USA
Just getting up to speed on this mod.

I understand that the FX loop switching at the footswitch is disabled by the mod, but that a mod to the footswitch fixes that. Do I understand right?

Also -- I thought I'd read that the mod also kills the solo and/or master output functionality. Is this true? If so, is there are fix for that/those losses?

Many thanks.

_________________
Dave Labrecque
Becket, Massachusetts

Dual Rectifier Roadster
4x12 Rectifier Slant Front
1x12 Compact Open Back

Boss MS-3 and various pedals
2002 Gibson SG
2006 Fender MIM Stratocaster
2006 Fender MIM Telecaster
2004 Taylor 510CE


Top
 Profile

PostPosted: Tue Nov 17, 2009 8:41 pm
Offline
Mark II

Joined: Wed Sep 23, 2009 6:51 pm
Posts: 128
Would the Parallel to Series mod fix my issues?

Quote:
Flip the loop on for red and orange channels, and it sounds horrible. Volume is very compressed and pinpointed, instead of being full and massive sounding. It was also really fizzy and scratchy.

So I bypass the loop and all is well.


I have a 2-channel dual rectifier, so are there any drawbacks for me here? All I hear about is the footswitch options on 3-channel rectifiers.


Top
 Profile

PostPosted: Thu Nov 19, 2009 2:00 pm
Offline
Mark II

Joined: Fri Nov 21, 2008 9:40 pm
Posts: 82
Location: Aurora, Co
Jerrick wrote:
Would the Parallel to Series mod fix my issues?

Quote:
Flip the loop on for red and orange channels, and it sounds horrible. Volume is very compressed and pinpointed, instead of being full and massive sounding. It was also really fizzy and scratchy.

So I bypass the loop and all is well.


I have a 2-channel dual rectifier, so are there any drawbacks for me here? All I hear about is the footswitch options on 3-channel rectifiers.



I have a 2 ch triple rectifier and I used this viewtopic.php?f=4&t=28828 to convert mine to a serial loop. Problem was that even with this mod I still got bleed through. It wasn't any differnent than turning the mix and level knobs to 100%

_________________
Gibson les paul studio
Mark IV wide combo
Nova System


Top
 Profile

PostPosted: Fri Nov 20, 2009 9:53 am
Offline
Mark I

Joined: Sat Aug 01, 2009 10:14 am
Posts: 50
Quote:
That's not my handwriting BTW, that's straight from Mesa. But here it is typed out for you:

1) Lift wiper wire of send and mix pots from rear jack board
2) Lift forward end of 0 ohm resistors next to send and return jacks
3) Add jumper from mix pot's empty pad to lifted end of return jack's 0 ohm resistor
4) Extend send pot's wiper wire to lifted end of send's 0 ohm resistor
That's not my handwriting BTW, that's straight from Mesa. But here it is typed out for you:

1) Lift wiper wire of send and mix pots from rear jack board
2) Lift forward end of 0 ohm resistors next to send and return jacks
3) Add jumper from mix pot's empty pad to lifted end of return jack's 0 ohm resistor
4) Extend send pot's wiper wire to lifted end of send's 0 ohm resistor


If this mod is directly from Mesa, will having an authorized Mesa tech do this mod void my warranty? Im guessing it will.


Top
 Profile

PostPosted: Fri Nov 20, 2009 2:10 pm
Offline
Mark III

Joined: Tue Jun 26, 2007 1:48 pm
Posts: 211
Two of the three transistors are to enable and bypass the send and return jacks. Those are marked J125s, and J125r. The one marked J125m is part of the mute circuit and is there to lessen pops during channel switching. Without it you're liable to have the pop repeat during delay echos. I don't see any reason to remove j125m as it is not part of the loop circuit rather it's part of the channel switching circuit. Likewise the solo function should not be affected by this mod. Because J125s and J125m are bypassed and those control the loop on and off function, you can not disable the loop, and no number of modifications to the foot switch will change that.

_________________
Mark III Purple Stripe Combo S/N 18783
Dual Rectifier Rack Rev.F S/N R-001082
Triple Rectifier Rev.G S/N R-006420
Trem-O-Verb Combo S/N R-04706
Triaxis S/N T0265
2:90 S/N N-1573
ADA MP-1, Peavey 5150 Combo, DIY Slo 100, Line 6 Vetta Comb


Top
 Profile

PostPosted: Fri Nov 20, 2009 2:11 pm
Offline
Mark I

Joined: Sat Oct 24, 2009 12:54 am
Posts: 44
Location: Tucson, Arizona, USA
muramasa wrote:
I have a 2 ch triple rectifier and I used this viewtopic.php?f=4&t=28828 to convert mine to a serial loop. Problem was that even with this mod I still got bleed through. It wasn't any differnent than turning the mix and level knobs to 100%


Are you saying that particular mod made no difference at all?

_________________
Dave Labrecque
Becket, Massachusetts

Dual Rectifier Roadster
4x12 Rectifier Slant Front
1x12 Compact Open Back

Boss MS-3 and various pedals
2002 Gibson SG
2006 Fender MIM Stratocaster
2006 Fender MIM Telecaster
2004 Taylor 510CE


Top
