Post your pedalboard

Guitar and bass FX discussion

Moderators: Guitarzan, Grandor, ned

Laskyman
Mark IV
Posts: 909
Joined: Sun Jul 29, 2007 3:41 pm
Location: Under the Big Sky...

Re: Post your pedalboard

Post by Laskyman » Wed Sep 15, 2010 7:19 am

NYC built my board- there are pics of it in this thread...over 2 years of use, still bulletproof...good guys over at NYC
*Laskyman*
Mesa Mark V head, Mesa Roadking 212 Cab
Fractal Audio Axe FX II
MFC 101 Mission EX Pedal
Zoom HD16/ Peavey Transformer 112
MIJ Ibanez 6's, Suhr Tele, BICH Exotic 10

User avatar
konstantine RK
Mark IV
Posts: 612
Joined: Sun Feb 17, 2008 2:09 pm
Location: Chicago

Re: Post your pedalboard

Post by konstantine RK » Tue Sep 21, 2010 9:25 pm

look up Goodtime Music in Streamwood IL.... they got Pedaltrain boards with Anvil roll cases.

Pat Davy is the man you want to talk to
Roadking I Head
Randall RM100 (4 sale)
Mesa rect 4x12 straight cab V30's
Mesa rect 4x12 straight cab C90's
Mesa rect 4x12 slanted X config V30 C90's
Mesa 2x12 rectifier EVF's
3 Gibsons, Ovation celebrity
Eventide stompboxes
Budda Wah & pedals

dbsens03
Mark III
Posts: 302
Joined: Fri Jan 08, 2010 3:57 pm

Re: Post your pedalboard

Post by dbsens03 » Tue Oct 19, 2010 12:58 pm

Here was mine. After this picture was taken I added a MXR Zakk Wylde Chorus pedal, a POG2, and a dunlop wah.
Rad sounds came from the combination of POG2, Carbon Copy, and Volume swells.

"Music is worthless unless it can make a complete stranger break down and cry."
"There are only two kinds of music; music that sounds good, and whatever you want to call that other stuff."

User avatar
konstantine RK
Mark IV
Posts: 612
Joined: Sun Feb 17, 2008 2:09 pm
Location: Chicago

Re: Post your pedalboard

Post by konstantine RK » Tue Oct 19, 2010 10:51 pm

Pat Davey owner of Goodtime music sells and build pedal train pedalboards... he built this one for me and not only does it kick the ass of my Furman board... it is much easier to use in rehearsal or onstage. Any loose cables you see are my loop and line connections which I have not matched to the board as of yet.
IL boogie people call 630 837 3733 ask for Pat in Streamwood IL
Roadking I Head
Randall RM100 (4 sale)
Mesa rect 4x12 straight cab V30's
Mesa rect 4x12 straight cab C90's
Mesa rect 4x12 slanted X config V30 C90's
Mesa 2x12 rectifier EVF's
3 Gibsons, Ovation celebrity
Eventide stompboxes
Budda Wah & pedals

User avatar
konstantine RK
Mark IV
Posts: 612
Joined: Sun Feb 17, 2008 2:09 pm
Location: Chicago

Re: Post your pedalboard

Post by konstantine RK » Fri Oct 22, 2010 3:46 pm

I switched out the Budda wah pedal to my old purple budda wah! Still have not found that sweet sweep in the new budda wah pedal.
Roadking I Head
Randall RM100 (4 sale)
Mesa rect 4x12 straight cab V30's
Mesa rect 4x12 straight cab C90's
Mesa rect 4x12 slanted X config V30 C90's
Mesa 2x12 rectifier EVF's
3 Gibsons, Ovation celebrity
Eventide stompboxes
Budda Wah & pedals

Laskyman
Mark IV
Posts: 909
Joined: Sun Jul 29, 2007 3:41 pm
Location: Under the Big Sky...

Re: Post your pedalboard

Post by Laskyman » Sat Oct 23, 2010 2:24 pm

he built this one for me and not only does it kick the ass of my Furman board... it is much easier to use in rehearsal or onstage. Any loose cables you see are my loop and line connections which I have not matched to the board as of yet
This board looks great- with the exception of the wall-warts....I cant overlook them them any longer knowing there is a solution to make them go away...killer board though!
*Laskyman*
Mesa Mark V head, Mesa Roadking 212 Cab
Fractal Audio Axe FX II
MFC 101 Mission EX Pedal
Zoom HD16/ Peavey Transformer 112
MIJ Ibanez 6's, Suhr Tele, BICH Exotic 10

User avatar
ak47
Mark III
Posts: 254
Joined: Sat Aug 19, 2006 6:08 pm

Re: Post your pedalboard

Post by ak47 » Sun Oct 24, 2010 4:00 am

Just wondering about your Eventides... have you ever midi'd them up to each other so as to use one as a master controller? I am interested to learn more about this after reading about this possibility on their forum pages...
konstantine RK wrote:Pat Davey owner of Goodtime music sells and build pedal train pedalboards... he built this one for me and not only does it kick the ass of my Furman board... it is much easier to use in rehearsal or onstage. Any loose cables you see are my loop and line connections which I have not matched to the board as of yet.
IL boogie people call 630 837 3733 ask for Pat in Streamwood IL

User avatar
konstantine RK
Mark IV
Posts: 612
Joined: Sun Feb 17, 2008 2:09 pm
Location: Chicago

Re: Post your pedalboard

Post by konstantine RK » Sun Oct 24, 2010 9:46 am

Wall warts - I tried Bob Bradshaw's powerbox by CAE and we couldn't get it to work. Ian more confident that the Eventides power supply is steady on out of the box. They look sloppy but I am out of money and i just don't have any desire to add anymore additional weight.

Midi cables... Yes I have used midi cables to slave two to the master so I could switch but I don't use all three that much so I keep it simple when using them so I'm not using midi as you can see but also because I cannot update them myself

Anyhow they are close to my feet and I'll just use them as pedals.
Roadking I Head
Randall RM100 (4 sale)
Mesa rect 4x12 straight cab V30's
Mesa rect 4x12 straight cab C90's
Mesa rect 4x12 slanted X config V30 C90's
Mesa 2x12 rectifier EVF's
3 Gibsons, Ovation celebrity
Eventide stompboxes
Budda Wah & pedals

CjGuitarist82
Mark I
Posts: 29
Joined: Wed Dec 08, 2010 3:04 am
Location: Nashville, TN

Re: Post your pedalboard

Post by CjGuitarist82 » Fri Dec 10, 2010 12:38 am

ReIgnition wrote:
billboogie wrote: ISP is sucking up NS-2 buyers.
More people should try Both. (If you're playing anything high gain, that is). When I started using both is when my tight rhythms got Really tight. ISP cleans up any unwanted guitar noise, NS-2 cleans up pedal noise. I did plenty of tests playing the same riff with (1) Neither (2) One OR the Other (3) Both. (3) Comes out Way ahead in Every situation. As long as you have it set up right, you won't lose any tone (to speak of) or have unnatural cut offs / decay.
***BOARD:***
VHT Valvulator I > Boss TU-2 > Dunlop 535Q > Boss CS-3 > Boss OC-2 > ISP Decimator > Maxon OD808 vs. Ibanez TS808 > Boss NS-2
***AMP:***
Mesa Dual Rectifier
***FX LOOP:***
Ibanez DE7 > Boss BF-2 > EH Holy Grail Nano

User avatar
MesaENGR412
Single Recto
Posts: 1790
Joined: Sat May 20, 2006 10:49 am
Location: Concord, NC
Contact:

Re: Post your pedalboard

Post by MesaENGR412 » Mon Dec 13, 2010 12:41 am

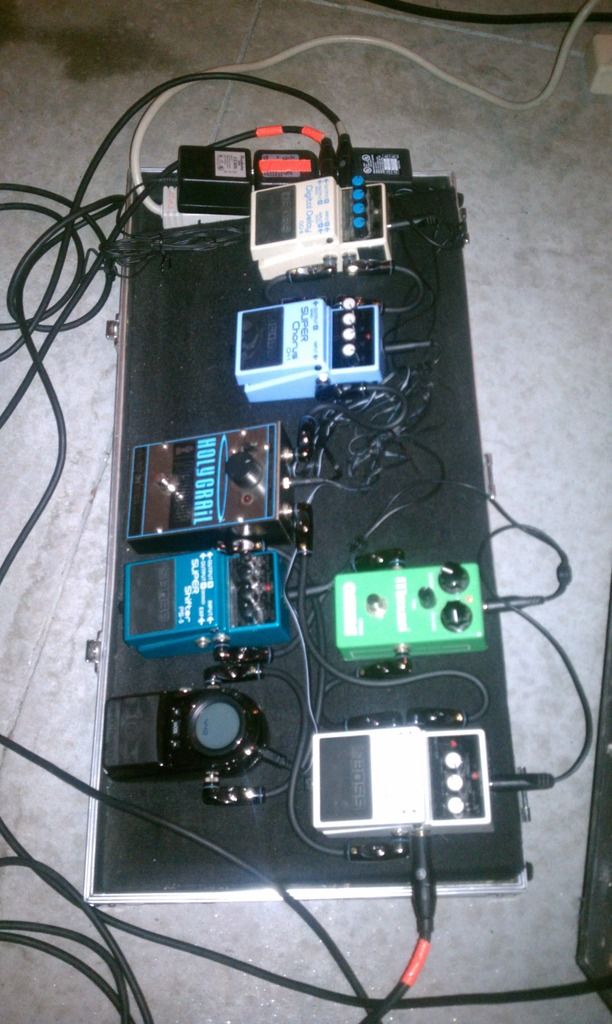

Got some new stuff added, Chain of effects goes:

Guitar-->NS-2 input-loop send->Maxon OD808-->Boss PS-5-->Planet Waves Strobe Tuner- loop return->NS-2 output-->EH Holy Grail-->Boss CH-1-stereo outs->Boss DD6-stereo outs->Dual Rectifiers

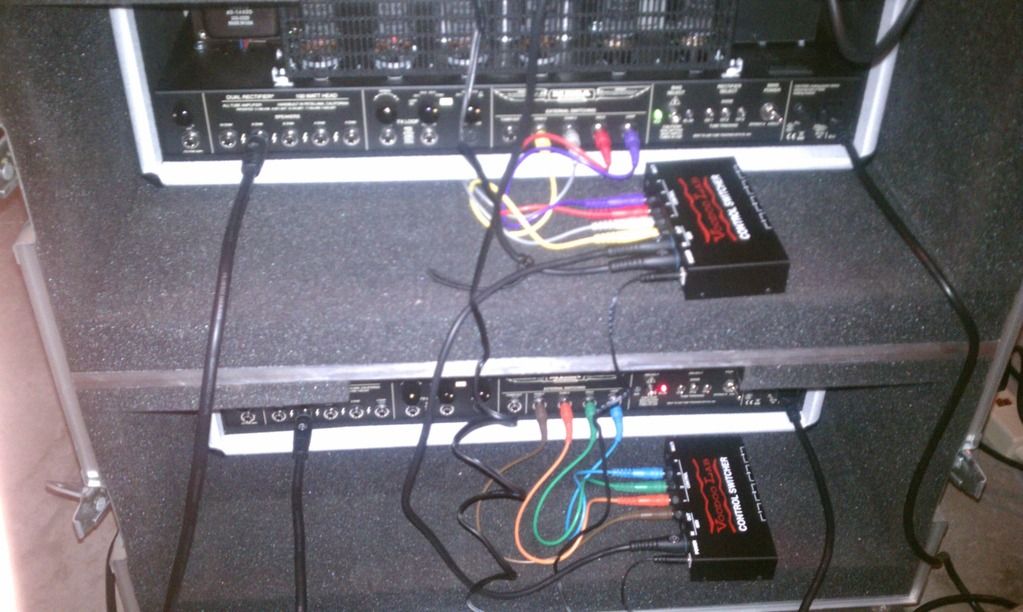

Also have the Rocktron MIDImate, using it to switch both heads channels with Voodoo lab Controls Switchers:

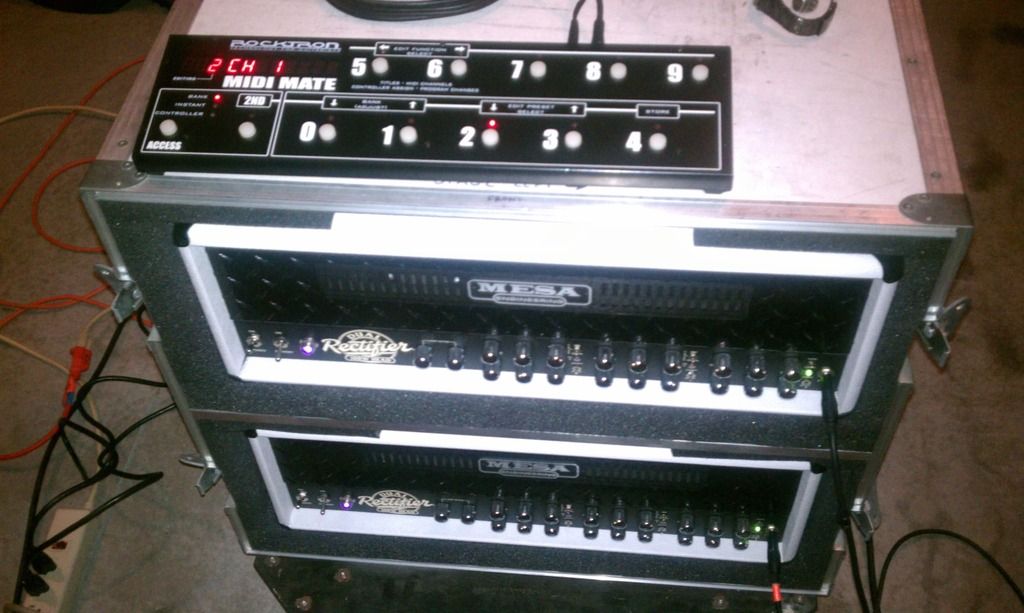

Cool pick taken about a month ago:


-AJH
Last edited by MesaENGR412 on Fri Jan 07, 2011 11:39 pm, edited 1 time in total.
Fractal Axe FX II MK II/GCP
Multiwatt Dual Rec Blackface/White tolex-EL34
Recto 4x12-C90/V30 x pattern, RK 2x12 - White Bronco/Black grille
Schecter SLS-FR/Hellraiser Extreme-FR/Blackjack C7-FR
Endorsements: Mesa Boogie/Schecter/Planet Waves/D'Addario

User avatar
glgarber
Bottle Rocket
Posts: 19
Joined: Mon Oct 18, 2010 12:18 am
Location: Columbus, IN
Contact:

Re: Post your pedalboard

Post by glgarber » Fri Jan 07, 2011 9:29 pm

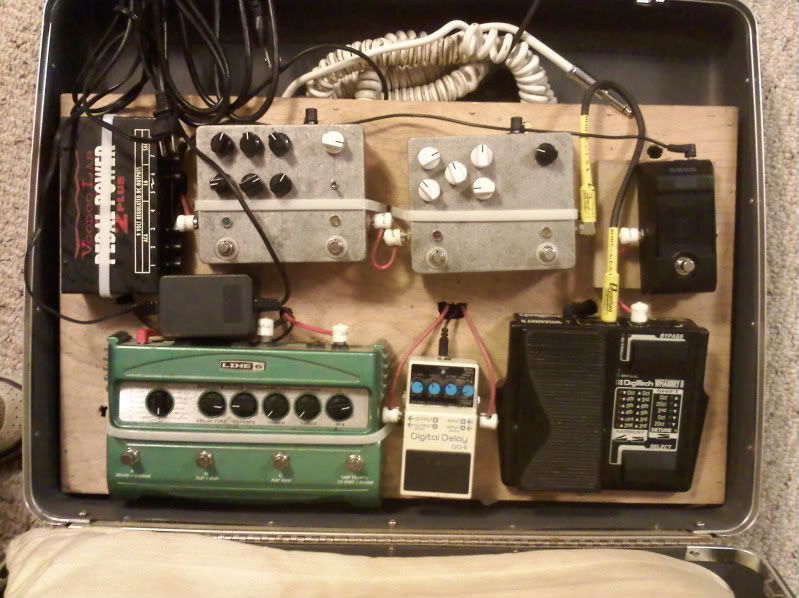

My most recent board.

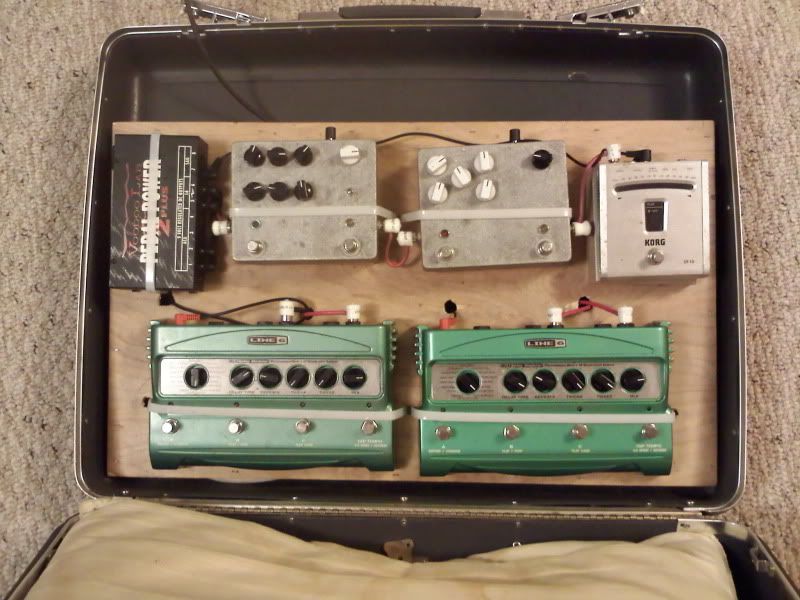

Before that, it was this.




I'm currently re-working a new board design to accommodate more pedals I've picked up. It'll have 2 tiers, with the power supplies (Voodoo Lab Pedal Power 2+ and Pedal Power AC) under the tier. I'll definitely post pics when it's done.

Roadifier
Mark III
Posts: 346
Joined: Thu Sep 10, 2009 7:19 am
Location: Tampa Fl

Re: Post your pedalboard

Post by Roadifier » Sun Jan 23, 2011 11:51 pm

MesaENGR412 wrote:Image
Got some new stuff added, Chain of effects goes:

Guitar-->NS-2 input-loop send->Maxon OD808-->Boss PS-5-->Planet Waves Strobe Tuner- loop return->NS-2 output-->EH Holy Grail-->Boss CH-1-stereo outs->Boss DD6-stereo outs->Dual Rectifiers

Also have the Rocktron MIDImate, using it to switch both heads channels with Voodoo lab Controls Switchers:


Cool pick taken about a month ago:


-AJH
Hey, I hae a question. are you using the Din connector for switching the amp channels with the Voodlabs control switcher?

cabba2203

Re: Post your pedalboard

Post by cabba2203 » Wed Jan 26, 2011 1:33 pm

Morley Little Aligator Volume, Morley Mark Tremonti Wah/Boost, Line 6 M13,
Korg Pitch Black tuner, Wampler Super Plextortion, FreeForm FX Black Label Overdrive


2nd pedalboard I'm putting together, not complete or arranged yet.
I still need to add a Morley George Lynch Dragon 2 wah and a ModTone Stutter Kill.

Fulltone MDV-2 Deja Vibe, TC Electronics Nova Dynamics, Nova Drive and Nova Repeater,
G-switch (for Nova Drive), Boss GE-7 Eq, CE-2 CHorus, NS-2 Noise Sup., EH-1 Enhancer, NF-1 Noise Gate.


User avatar
MesaENGR412
Single Recto
Posts: 1790
Joined: Sat May 20, 2006 10:49 am
Location: Concord, NC
Contact:

Re: Post your pedalboard

Post by MesaENGR412 » Sun Jan 30, 2011 9:42 pm

Roadifier wrote:
Hey, I hae a question. are you using the Din connector for switching the amp channels with the Voodlabs control switcher?
Hey man, I am actually using the external switching jacks on the back of the heads.
I bought a set of 8 short cables from american musical supply and just hooked them up four and four. The new Rects only have
4 external jacks, and CH 1 is default, so it works perfectly since the Control Switchers only have four controls a piece. Since Channel 2 is default on the older heads, I would imagine that when using the external jacks, it would not be necessary to connect anything to channel 2's external jack, and when nothing is selected on the Control Switcher, then it would go automatically to channel 2. Just a guess though.


-AJH
Fractal Axe FX II MK II/GCP
Multiwatt Dual Rec Blackface/White tolex-EL34
Recto 4x12-C90/V30 x pattern, RK 2x12 - White Bronco/Black grille
Schecter SLS-FR/Hellraiser Extreme-FR/Blackjack C7-FR
Endorsements: Mesa Boogie/Schecter/Planet Waves/D'Addario

Vogelsong
Mark III
Posts: 394
Joined: Sun Nov 28, 2010 7:36 am

Re: Post your pedalboard

Post by Vogelsong » Sat Feb 05, 2011 1:01 am

Mines pretty simple.
Vogelsong

G&L Comanche,
G&L Legacy,
RI 64 Vibroverb Custom
Original 66 Fender Reverb,
Original 59 Fender Bandmaster,
69 Fender Coronada II,
51 Gibson ES300,
Beater Strat,
Waldon Acoustic,
